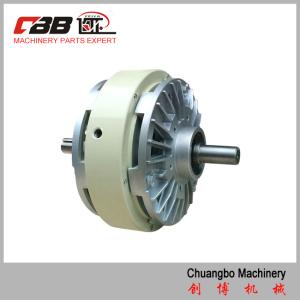

50NM Magnetic Powder Clutch

Brand Name : CBB

Model Number : FZ50A

Certification : CE

Place of Origin : Zhejiang

MOQ : 1 piece

Price : USD200

Payment Terms : T/T, Western Union

Supply Ability : 2000 pieces per month

Delivery Time : 3-7 days

Packaging Details : Plywood carton

Material : Steel

Type : Shaft type

Voltage : 24V

Torque : 50NM

Used : Unwind

Speed : 1400rpm

Weight : 15kg

HS code : 8505200000

Contact Now

Magnetic powder brake/clutch is a type of auto-control component with high-performance which uses driving and driven units as main body, powder (magnetic powder) with highmagnetic conductivity as working medium and exciting current as control means so as to achieve control transfer/braking torque and to keep the linear relationship between input current and output torque.
The magnetic powder clutch and magnetic power brake are utilise magnetic powder under the galvanomagnetic effect to transfer torque, It has advantages of magnetizing current and transmit linear relationship and rapid response speed, simple structure, no impact, no vibration and no noise, no pollution. It is a multi-purpose, superior performance of automatic control components, widely used in various industries of machinery loading, brake and compressing loading system and rewinding tension control winding.
The products are widely used in winding and unwinding starting/braking control, stamping startup, overload protection, position control, tension control, artificial load and relevant fast control systems.

Model	Torque/N.m	Current/A	Voltage/V	Speed/rpm	WEight/kg
FL6A	6	0.80	24	1400	4
FL12A	12	1.00	24	1400	6.5
FL25A	25	1.50	24	1400	9.5
FL50A	50	1.80	24	1400	15
FL100A	100	2.00	24	1000	30
FL200A	200	2.50	24	1000	55
FL400A	400	3.00	24	1000	80
